Product Overview

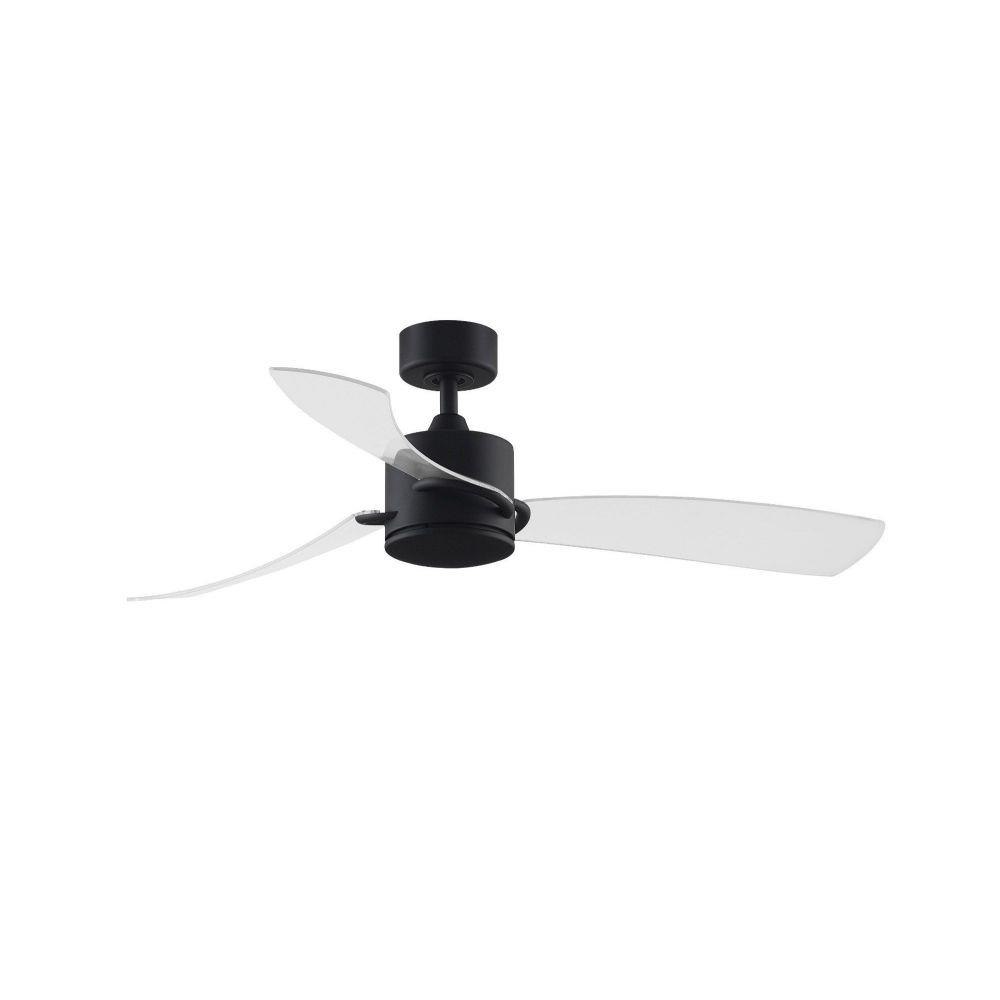

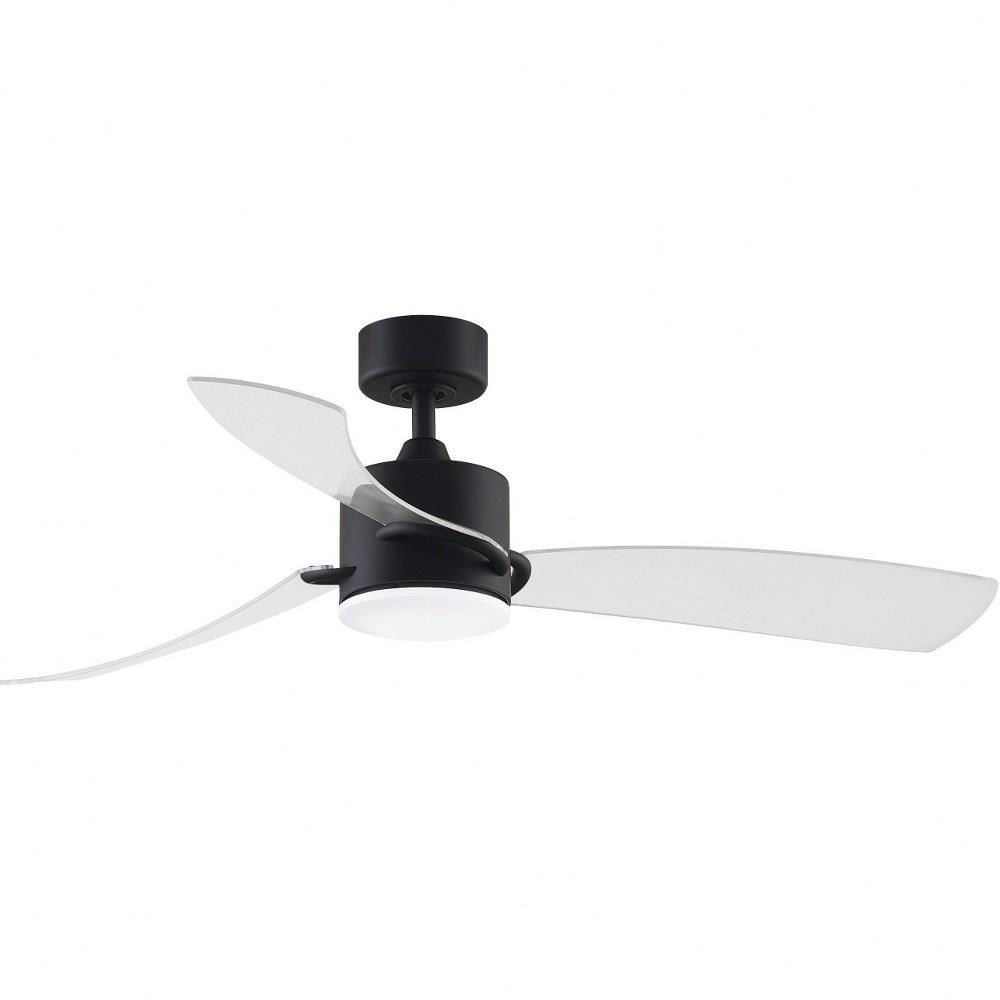

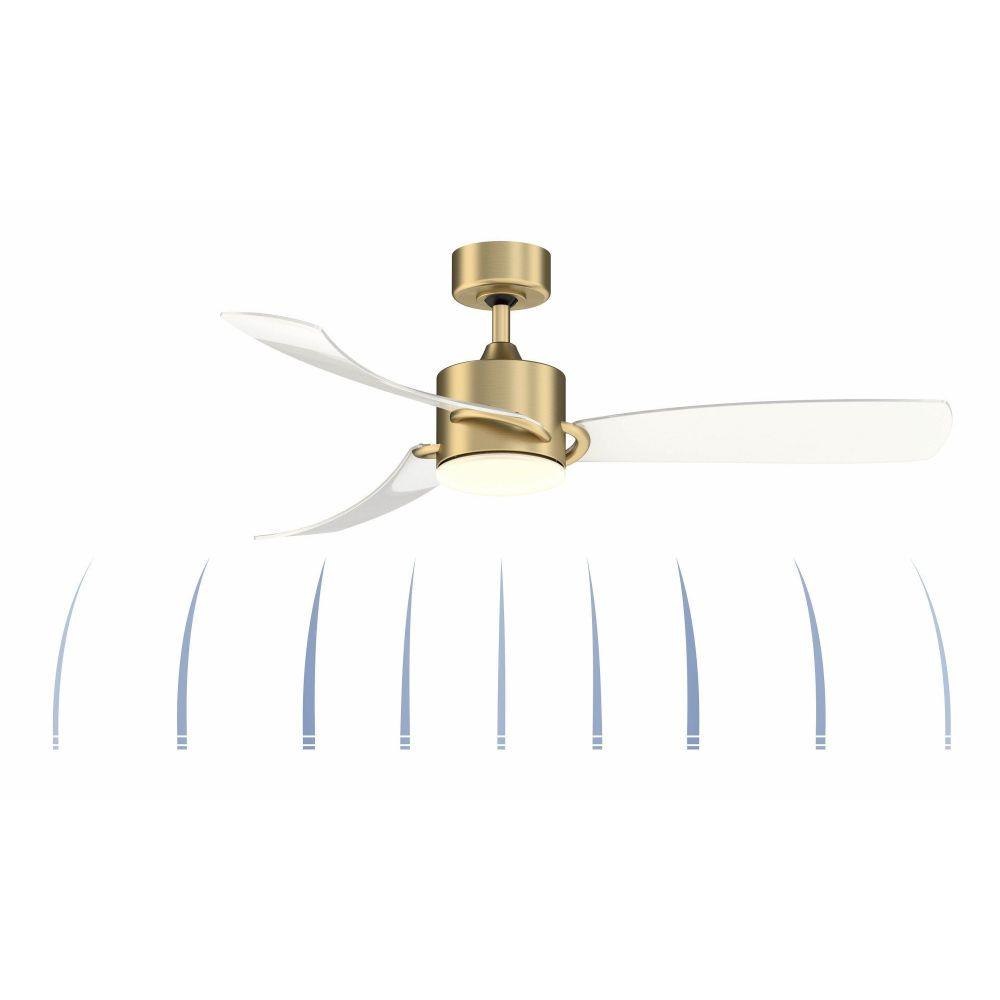

Enhance your indoor or outdoor living space with the SculptAire 3 Blade Ceiling Fan, measuring 52 inches in diameter and 13.88 inches in height. Designed for optimal airflow and quiet operation, this fan features a 3-speed energy-efficient AC motor with reversible airflow, supporting multi-season comfort. Its clear, gently curved blades with a 13° pitch deliver up to 4663 CFM on high speed, ensuring effective air circulation in rooms up to 400 square feet. The fan includes an 18-watt LED light kit producing 1500 lumens with a 3000K color temperature and CRI 90 for warm, natural illumination.

Technical Specifications

• Dimensions: 52" diameter, 13.88" height (including 4.5" down rod)
• Blade Span: 52 inches with 3 clear blades, 13° blade pitch
• Airflow Rates: 4663 CFM (High), 3276 CFM (Medium), 1980 CFM (Low)
• Motor: 153x20 mm AC motor, 3 speeds with reversible direction for summer and winter modes
• Light Kit: 18W LED, 1500 lumens, 3000K color temperature, CRI 90
• Control: TR500 handheld remote included; compatible with WiFi and Bluetooth controls (sold separately)
• Mounting: Stem hanging method; compatible with sloped ceilings up to 27° (42° with adapter)
• Safety: UL listed for damp locations (Black and Matte White finishes); dry rated for indoor use (Brushed Satin Brass and Chrome finishes)

Installation and Compatibility

The SculptAire fan requires a minimum ceiling height of 8 feet for proper clearance and can be mounted on sloped ceilings up to 27°, extendable to 42° with an optional slope adapter (SCB1-52). The fan includes a 4.5-inch down rod and is compatible with a close-to-ceiling kit (CCK8002BS) and corrosion-resistant down rods (DR1SSBS) for outdoor environments. Its reversible AC motor ensures quiet, powerful operation with enhanced torque and energy efficiency.

What's Included

• 3 clear, precision-balanced blades (52" span)
• 18-watt LED light kit with cover and bulb
• TR500 handheld remote with 23A battery
• 4.5" down rod for mounting

What Needs to Be Ordered Separately

• WiFi or Bluetooth smart home control devices
• Slope ceiling adapter (SCB1-52) for slopes over 27°
• Close-to-ceiling mounting kit (CCK8002BS)
• Corrosion-resistant down rod (DR1SSBS) for outdoor installations
• Alternative wall control options (WC1WH, WC2WH, WR500WH, WR501WH)

Key Features

• Energy-efficient 3-speed AC motor with reverse airflow for year-round comfort
• Clear blades with 13° pitch for optimal airflow and wobble-free operation
• Integrated 18W LED light with 1500 lumens output and warm 3000K color temperature
• Compatible with smart home systems via optional controls
• Durable finishes suitable for indoor and damp outdoor locations
• Includes remote control and supports multiple control options for convenience
• Limited lifetime warranty on motor ensuring long-term reliability
