Amps: .42/.27/.21/.17/.11/.08
• Limited Lifetime Warranty
• Rod Length(s): 6.00

Warranty: Limited Lifetime
• Amps: .42/.27/.21/.17/.11/.08
• Rod Length(s): 6.00

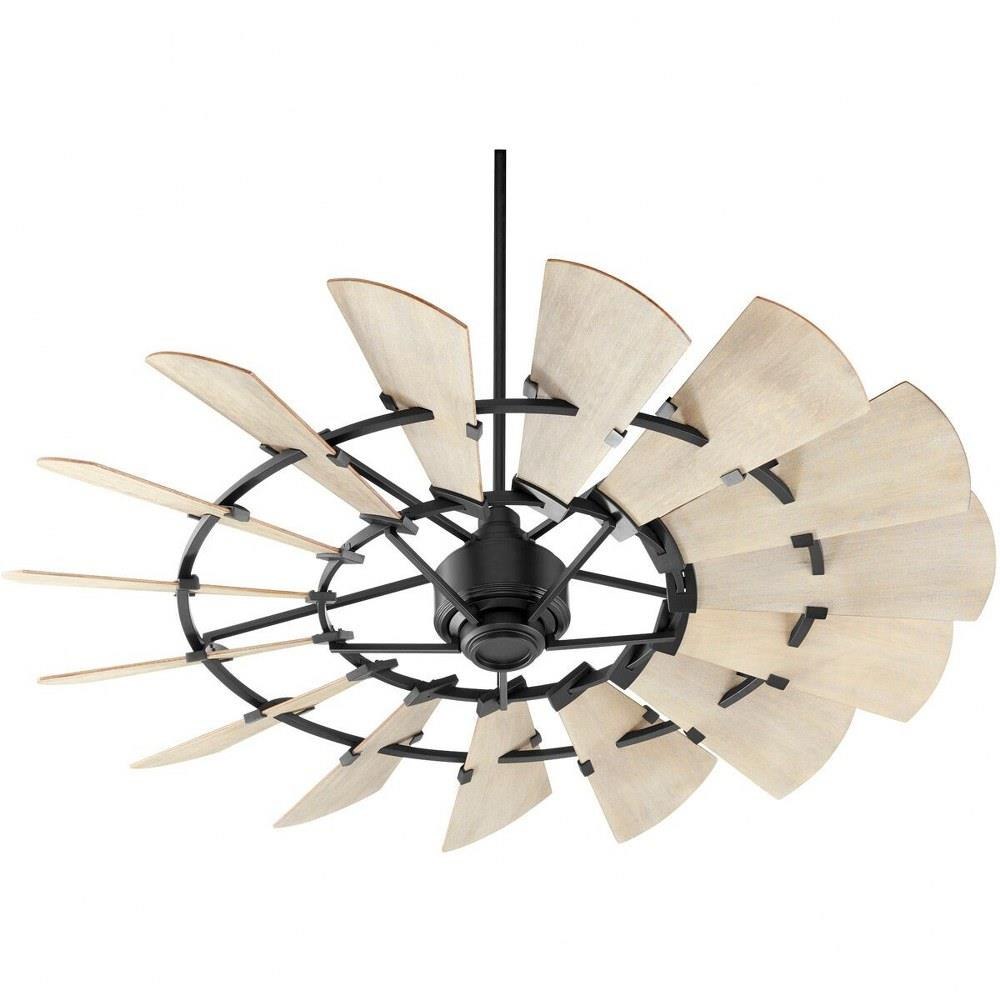

Windmill Indoor Fan Dimensions

• Diameter: 60" Blade tip to blade tip
• Ceiling Fan Dimensions
• Ceiling fan height: 16.50" From ceiling to bottom of the motor hub when using the supplied 6"" down rod.
• Blade drop Height: 11.50" From ceiling to the bottom of the fan blades.
• Requires a 8' ceiling for proper mounting safety.
• This fan can be installed on a vaulted ceiling up to 25° with a minimum 18"" down rod. 45° adapter available 7-1745-86.
• Maximum optional downrod length is 48""

Motor Information

• Strong Efficient DC Motor DC-165L
• 6 speeds forward and reverse
• The motor is covered under a limited lifetime warranty and is available in 3 designer colors.
• 80" Lead wire

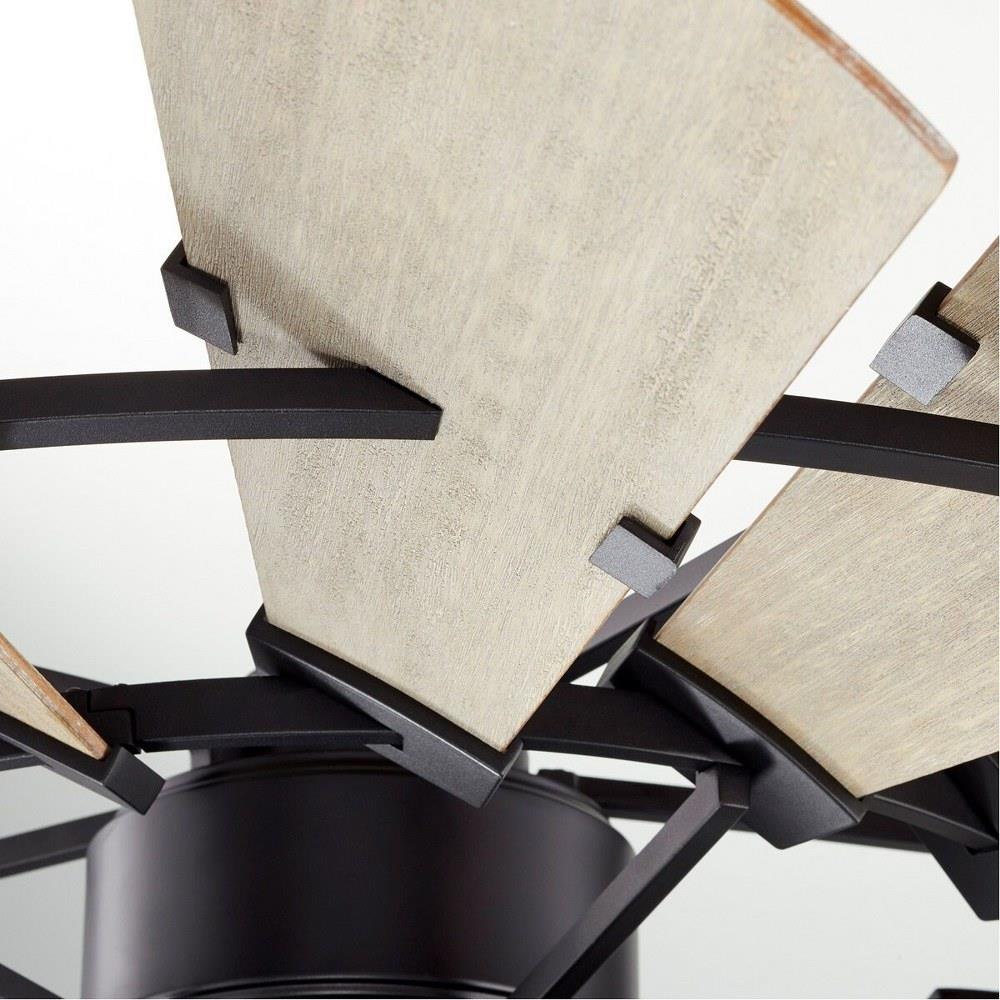

Fan Blades

• Windmill in the Oiled Bronze finish comes with 15 gorgeous rustic blades.
• The blades are a Weathered Oak finish, not reversible.
• The blade pitch is 30°
• The blades create an optimal airflow of 3472 CFM when used on the highest speed, while using only 33 watts of electricity!

Control

• Full function remote control included.
• 6 Speeds forward and reverse.

Light Kit

• Light kit not included on this fan.
• Light kit is available for the Windmill. Options include 1902-86, 1903-86, 1904-86, 1905-86, 1974-86, 1975-86.

Room Suggestion

• The Windmill is a great choice for large rooms that over over 400 square feet.
• Recommended indoor applications would be bedrooms, family or great rooms, main suite, loft, gym or exercise areas, garages, barns or warehouses.

Features

• UL listed for indoor location use.
• Available in 3 finishes Black, Oiled Bronze and Galvanized.
• Quiet DC motor with included remote control system.
• Gorgeous blade design with 15 blades to create a windmill look and style.

Seasonal Settings

• Reverse your fan blade direction with the change of seasons for maximum comfort and energy savings.
• Summer Setting - When looking directly up at your fan from below, the blades should be moving in a counter clockwise direction, pushing cool air down.
• Winter Setting - When looking directly up at your fan from below, the blades should be moving in a clockwise direction, pushing air upwards, circulating warm air from ceilings.
