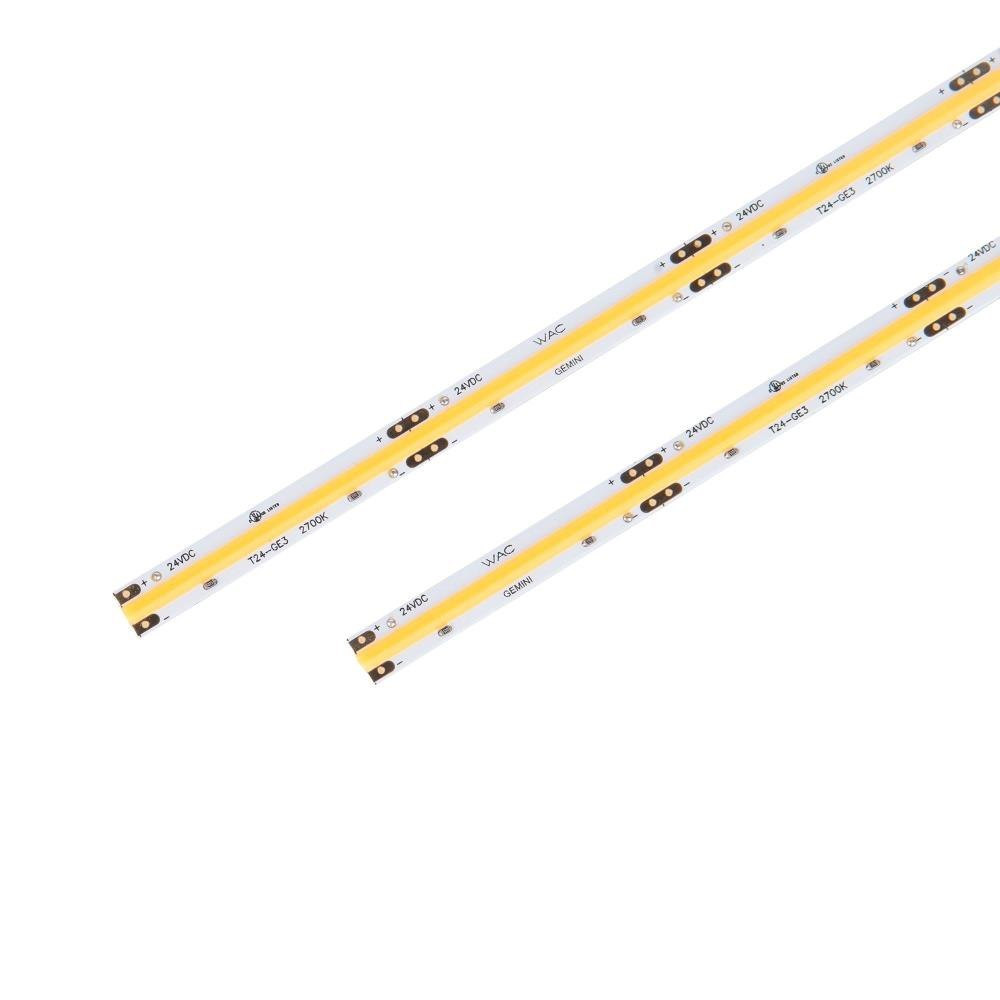

Build an economical and versatile layered lighting system with Raglan Close LED Tape Light. Raglan Close is dense LED Tape Light with a single continous phosphor coating that eliminates unsightly diode imaging and is great for applications where the light is reflected onto a surface or in direct line of sight. Raglan Close is easy-to-setup with seamless and scalable run lengths up to 24 feet on a single power suply. Flexible, customizable, and with a low profile. Raglan Close LED Tape Light delivers precision and performance with four selectable color temperatures from warm 2700K to cool 4000 Kelvin. Smooth robust illumination deployed from evenly placed UV coated LEDs for cove, accent and task lighting applications. Strong 3M adhesive bond for easy installation. Raglan Close can be cut in the field every 2in and re-connected with safe and secure connectors. Raglan Close is UL & cUL Damp Location listed and CEC Title 24 Compliant.

• Raglan Close LED tape light output is 3W per foot with easy-to-setup seamless and scalable run lengths up to 24 feet.
• Flexible and customizable with a low profile. Raglan Close LED Tape delivers precision and performance with four selectable color temperatures from warm to cool 2700K-3000K-3500K-4000K. Use with universal input voltage 120-220-277V power supply: PS-24DC-U and T24-BS-EX2 lead wire required or 120VAC power supply: EN-BT60 with lead wire included.
• Raglan Close LED tape light can be cut in the field every 2in and re-connected with safe and secure connectors. Smooth robust illumination deployed from evenly placed UV coated LEDs for cove, accent and task lighting applications. 15ft spool includes 2 X T24-BS-MM-CL I-connectors. 40ft Spool includes 8 X T24-BS-MM-CL I-connectors. 100Ft Spool includes 20 X T24-BS-MM-CL I-connectors.
• Smooth and continuous dimming with an electronic low voltage dimmer (ELV), TRIAC or 0-10V (0-10V only available with PS-24DC-U power Supply). Dimmers should be installed on the primary side of the transformer. Driver input voltage: 120V-220V-277V AC, Driver output voltage: 24V DC. Driver is available in a 288W max load.
• High Powered LED: Color Temperature: 2700K, 3000K, 3500K, and 4000K, 90+ CRI, Rated Hours: 80,000, Voltage: 24V, Lumen Options: 1.2W (100 Lumens) per foot, 2.2W (200 Lumens) per foot, and 3W (300 Lumens) per foot.
• Standards: UL & cUL Listed for Damp Locations IP20 rated. CEC Title 24 & ADA Compliant.
