Product Overview

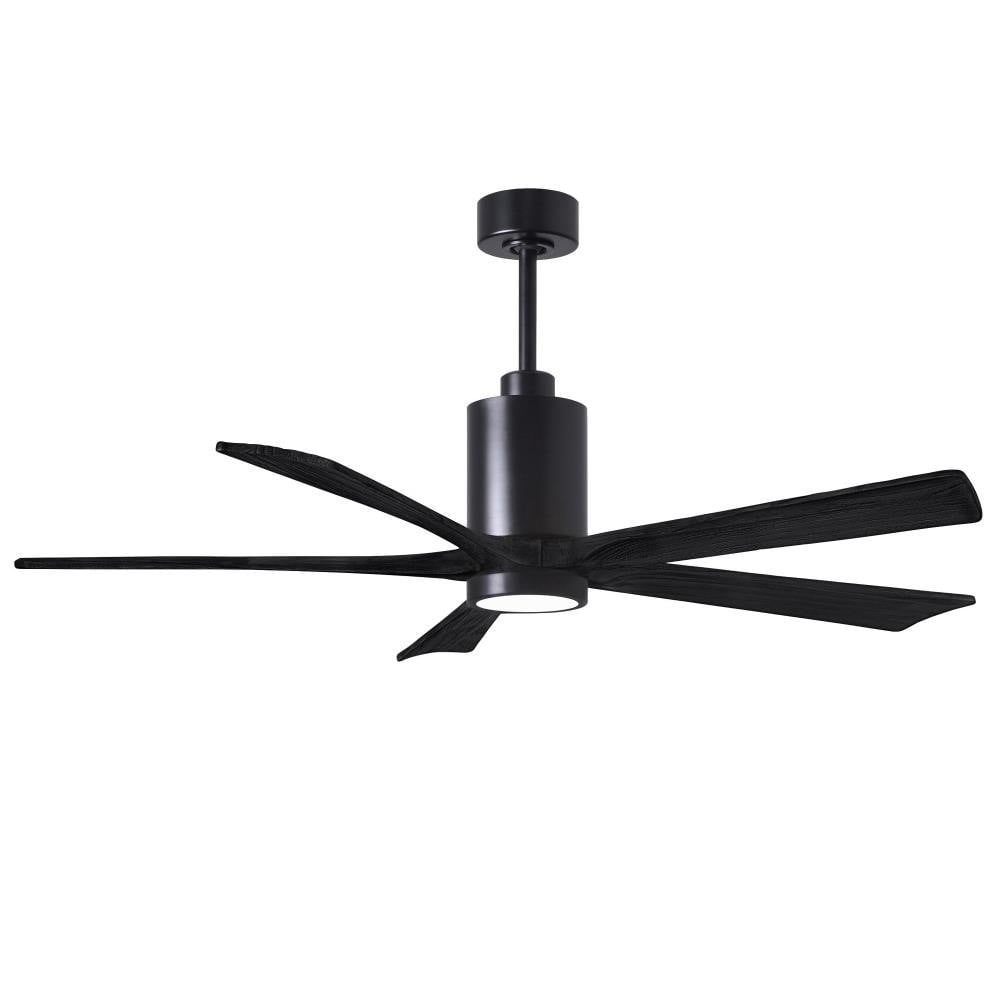

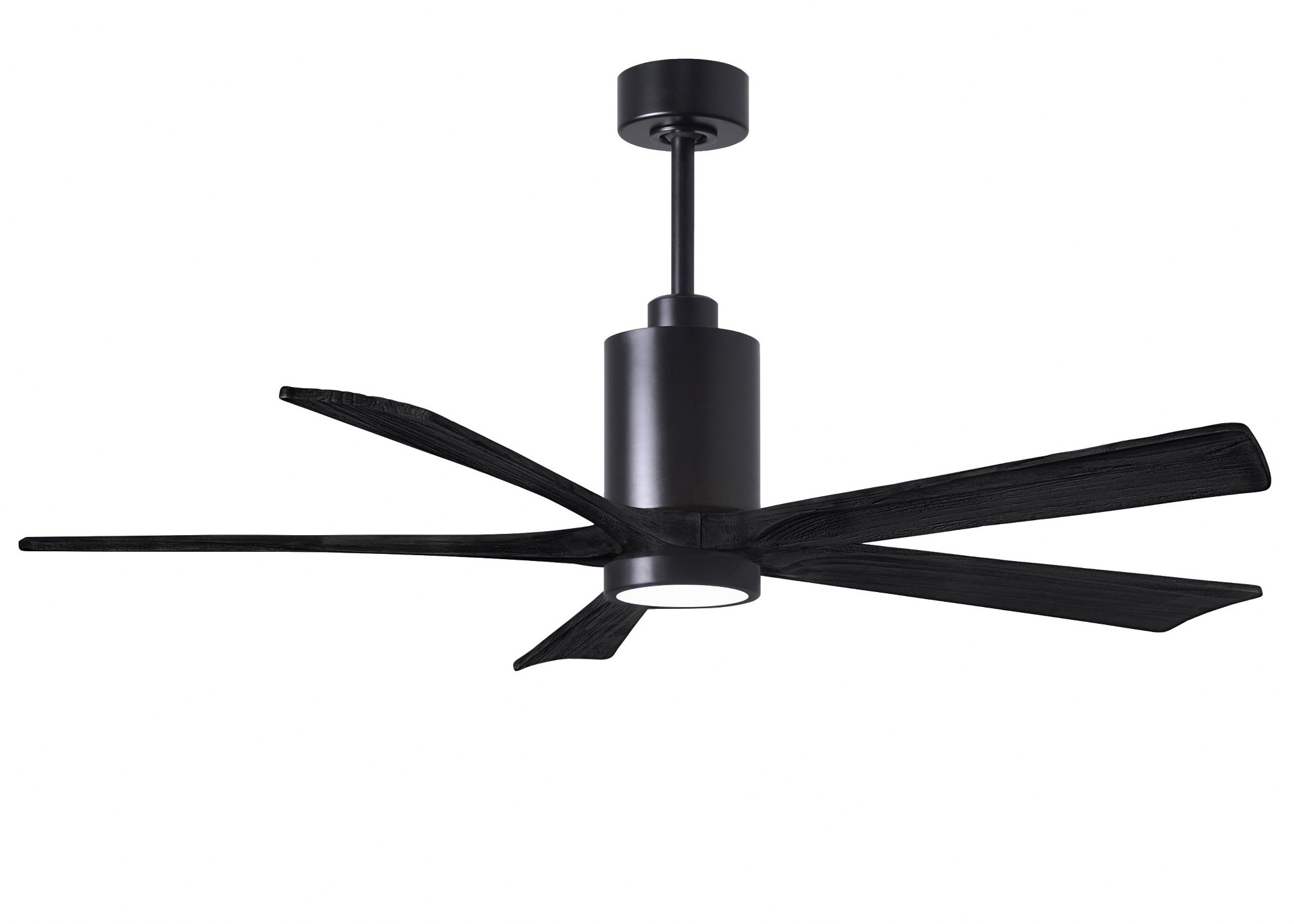

Enhance indoor and covered outdoor environments with the Eliot Parc-5 Five Blade Ceiling Fan, a sophisticated fixture blending contemporary design with advanced functionality. Measuring 60 inches in blade span and overall length and width, this ceiling fan is engineered to deliver powerful, whisper-quiet airflow while maintaining an elegant presence. Its solid balsa wood blades are mounted on a balanced cylindrical DC motor housing crafted from durable aluminum and steel, ensuring longevity and robust performance.

Performance and Efficiency

The Eliot Parc-5 fan operates with a highly efficient DC motor consuming just 31.64 watts at high speed, producing an impressive airflow of up to 5,547 cubic feet per minute. It offers six adjustable speed settings, ranging from a low airflow of 3,247 CFM to high, with blade pitch optimized at 15 degrees for maximum air circulation. The fan runs silently, with RPMs varying from 51 at low speed to 87 at high speed, making it ideal for both commercial and residential spaces. Its airflow efficiency averages 194 CFM per watt, underscoring its eco-conscious design.

Lighting Specifications

Integrated into the fan is an energy-efficient LED light kit featuring one dimmable bulb with an exceptional lifespan of up to 60,000 hours. The LED delivers a lumen output of approximately 1,693 lumens, providing ample illumination for bedrooms, dining rooms, offices, patios, and more. The light kit is designed for longevity, with an estimated 27.4 years of use at six hours per day, contributing to sustainable energy consumption.

Installation and Compatibility

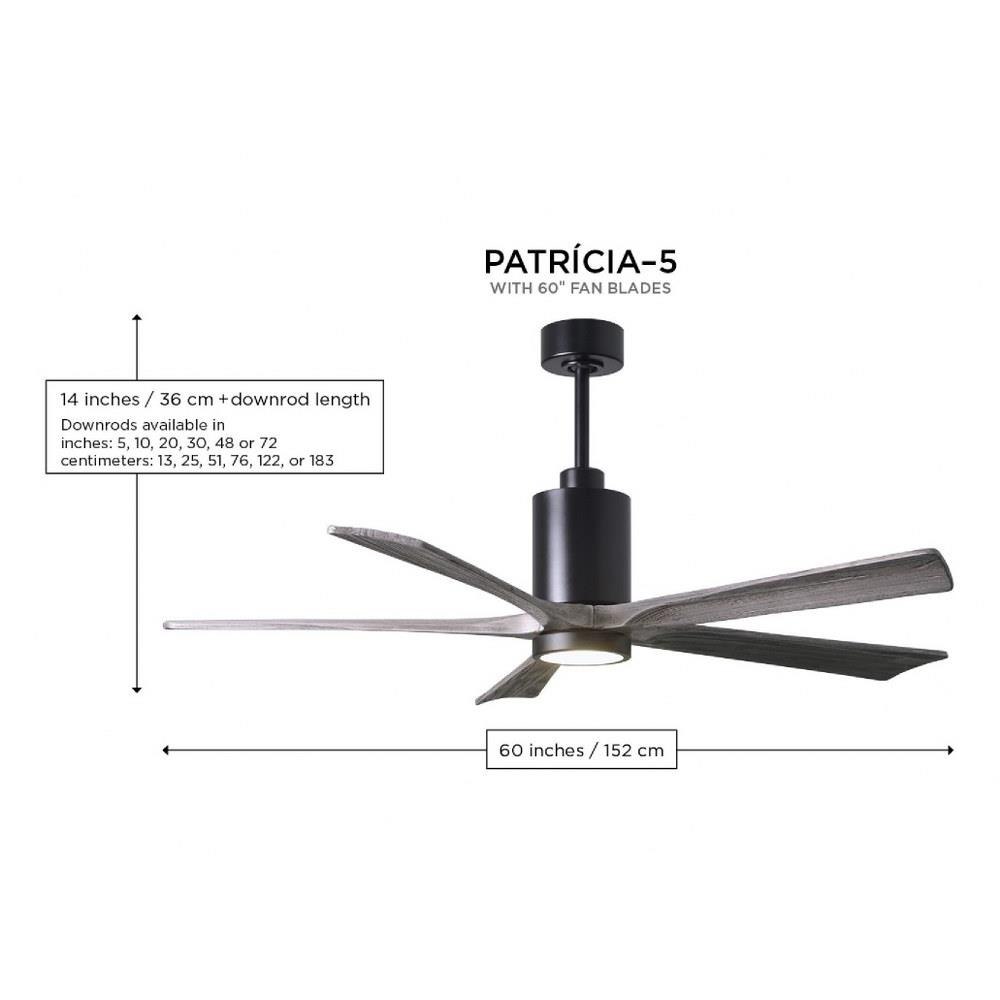

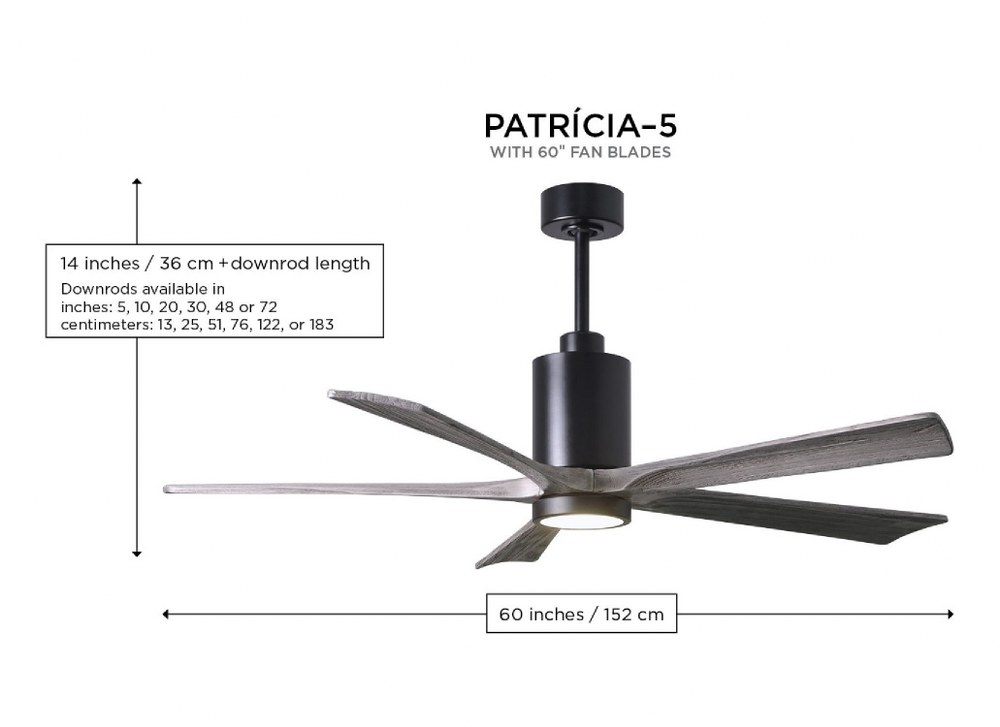

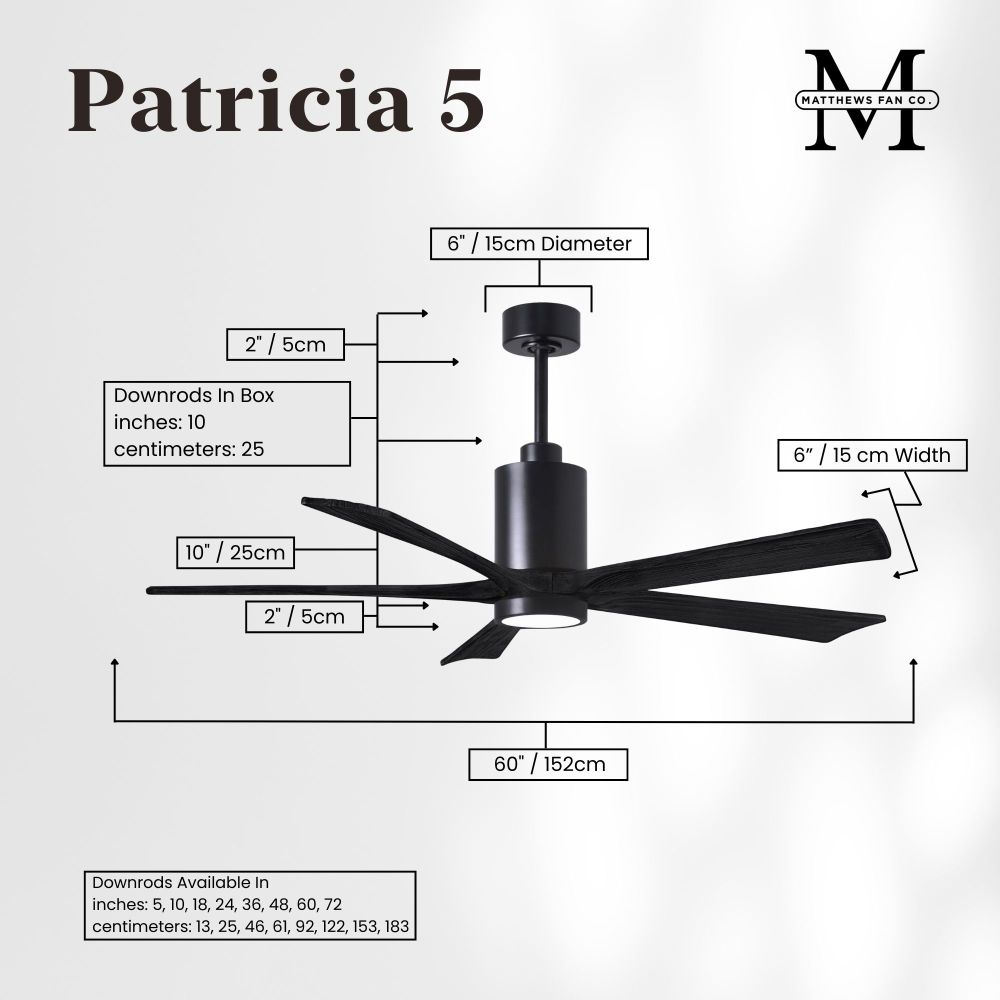

The Eliot Parc-5 ceiling fan supports versatile mounting options, compatible with flat or vaulted ceilings. It includes a canopy with a 6-inch diameter and comes with a 10-inch downrod, with additional downrod lengths available (5", 10", 20", 30", 48", 72") to accommodate ceiling heights and installation preferences. The overall drop from ceiling to fan bottom is 14 inches, making it suitable for various room sizes and ceiling configurations. Installation employs a stem hanging method, ensuring secure and stable mounting.

Maintenance and Durability

Constructed with premium materials including aluminum, steel, and balsa wood blades, this fan is designed for both aesthetic appeal and durability. Maintenance recommendations include biannual checks of support connections, brackets, and blade attachments to ensure continued safety and performance. Cleaning can be performed without removing the fan from the ceiling, facilitating easy upkeep.

Key Features

• Five solid balsa wood blades with 15-degree pitch for optimized airflow
• 60-inch blade span suitable for medium to large rooms
• Whisper-quiet DC motor with 6-speed settings and 31.64W power consumption
• Energy-efficient dimmable LED light kit with 1,692.95 lumens output
• Compatible with flat or vaulted ceilings with multiple downrod length options
• Silent operation with RPM range from 51 to 87
• Airflow efficiency averaging 194 CFM/Watt
• Durable aluminum and steel construction with contemporary styling

What’s Included

• Eliot Parc-5 ceiling fan with five balsa wood blades
• Integrated dimmable LED light kit with one bulb
• Canopy (6-inch diameter)
• 10-inch downrod
• Shade for light kit

What Needs to Be Ordered Separately

• Additional downrods for ceiling heights beyond standard installation (available in 5", 20", 30", 48", 72")
