Product Overview

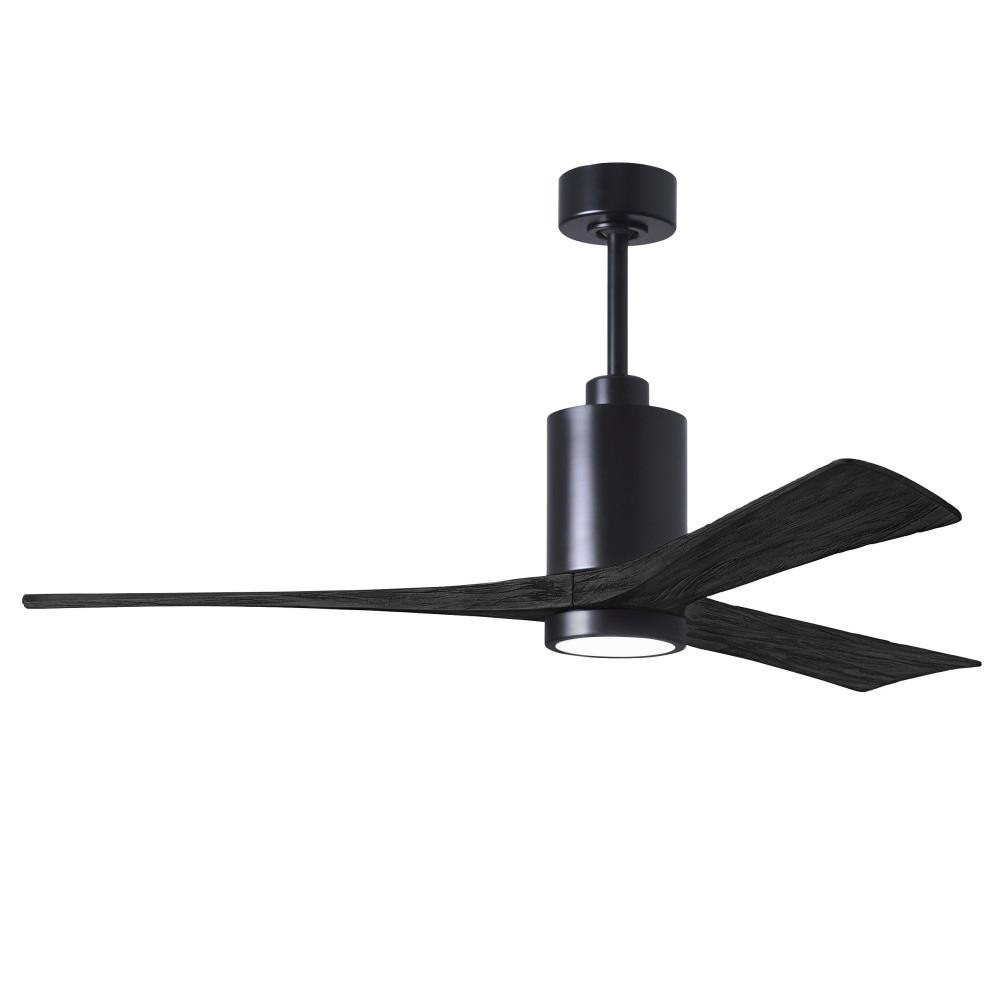

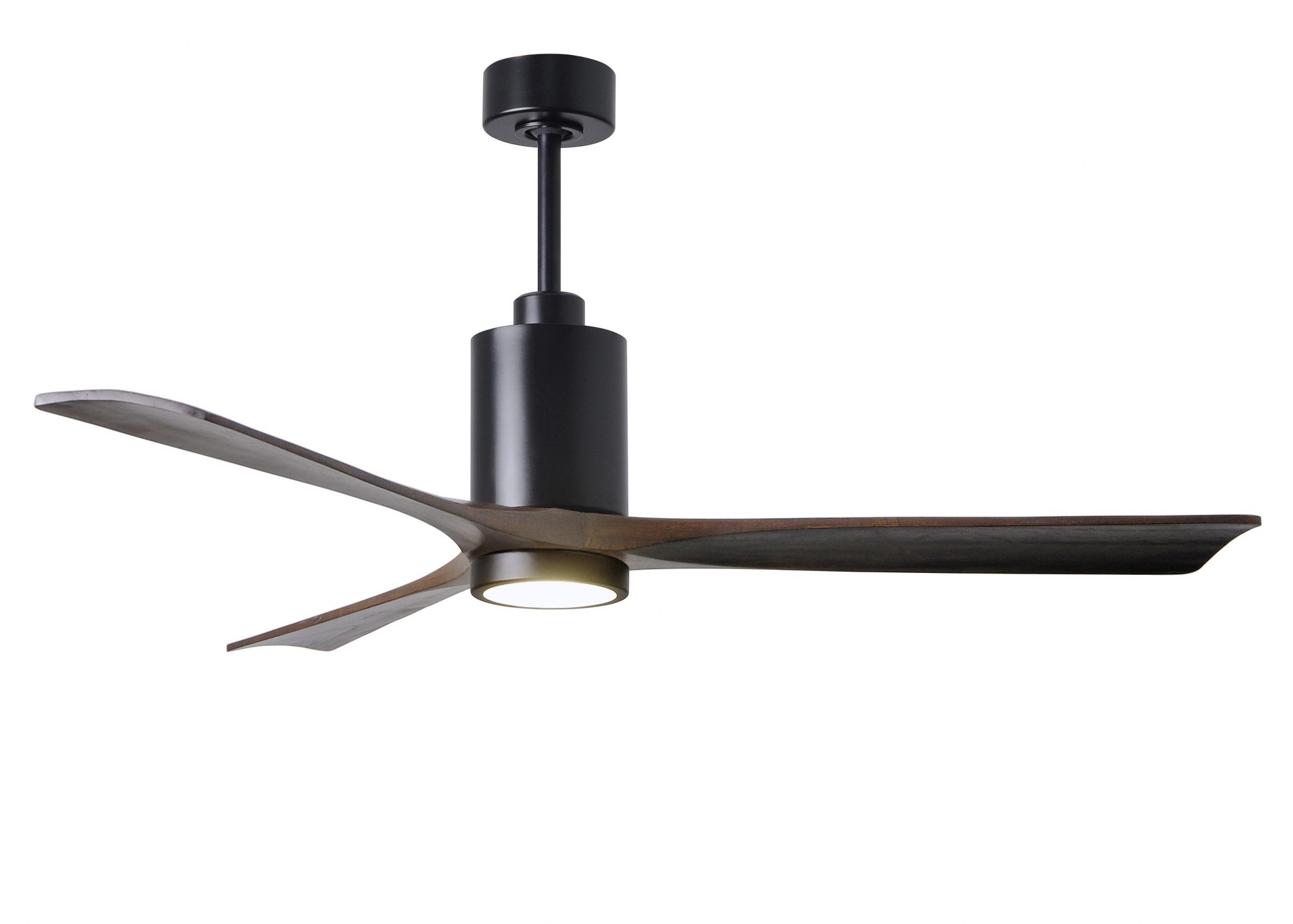

Enhance your living or commercial space with the Eliot Parc-3 Three Blade Ceiling Fan featuring a sleek contemporary design and a 60-inch blade span. This fan integrates solid balsa wood blades with a balanced, cylindrical DC motor housed in durable aluminum and steel, delivering efficient airflow with minimal noise. Its whisper-quiet operation makes it ideal for bedrooms, dining rooms, offices, patios, and more, blending modern aesthetics with robust performance.

Technical Specifications

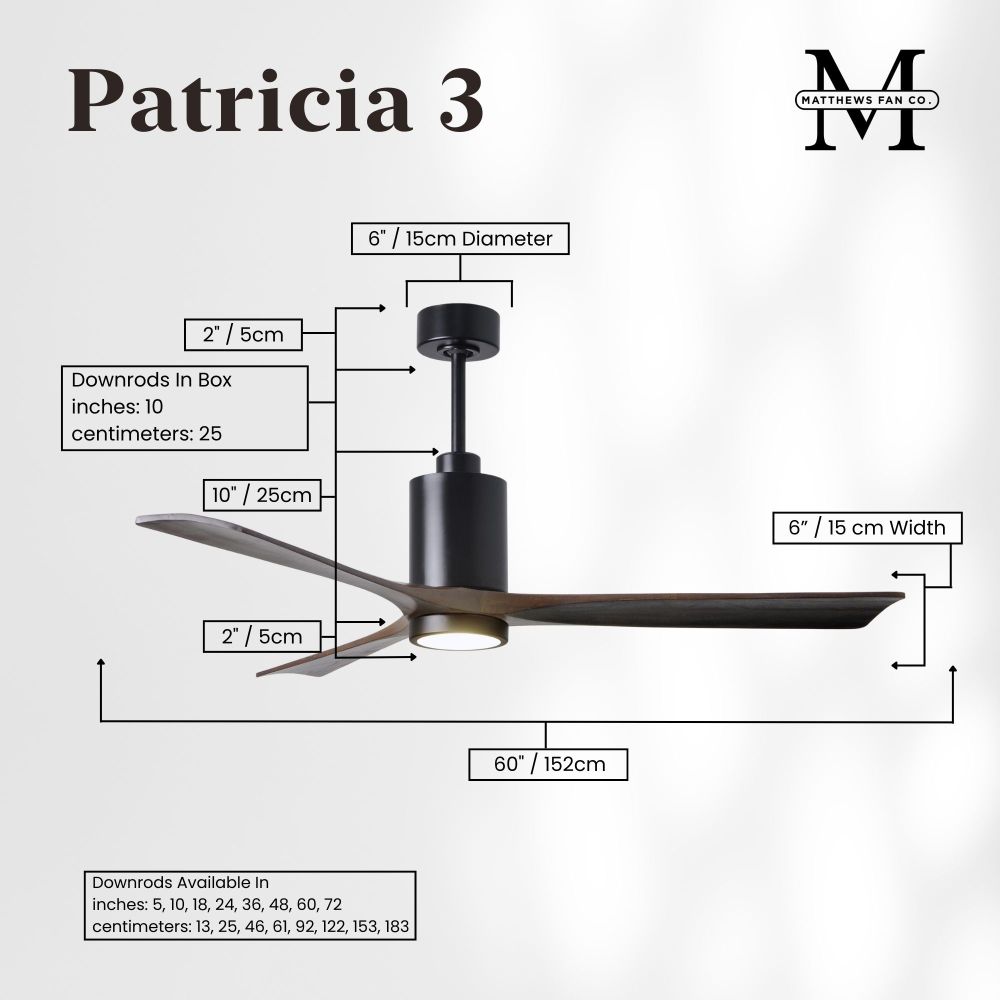

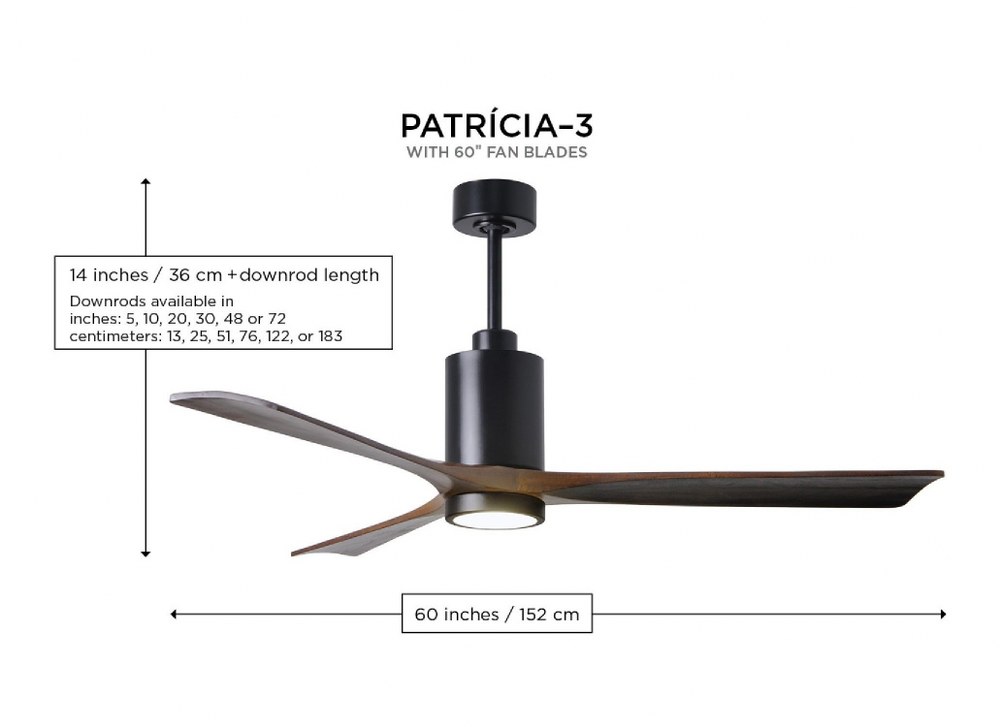

The Eliot Parc-3 ceiling fan operates on a 31.72-watt DC motor with six adjustable speeds, ranging from a silent 51 RPM on low to 156 RPM on high. It produces an impressive airflow of 6,833 cubic feet per minute at high speed and 2,113 CFM at low speed, achieving an average airflow efficiency of 219 CFM per watt. The 15-degree blade pitch optimizes air circulation, while the fan’s overall dimensions measure 60 inches in width and length, with a height of 13 inches and a canopy diameter of 6 inches. It supports installation on both flat and vaulted ceilings using downrods of varying lengths (5" to 72"), allowing flexible mounting options with an overall drop of 14 inches.

LED Light Kit Features

The integrated eco-conscious LED light kit provides a lumen output of approximately 1693 lumens with a single dimmable bulb, ensuring customizable illumination to suit any ambiance. The LED is rated for 60,000 hours of life expectancy, translating to an estimated 27.4 years of daily 6-hour use, combining longevity with energy efficiency. The light kit complements the fan’s modern design, enhancing both functionality and style.

Installation and Maintenance

The Eliot Parc-3 fan is designed for ease of installation with stem hanging method compatibility and a canopy included for a clean ceiling attachment. It is suitable for both commercial and residential applications. Routine maintenance involves biannual checks of support connections, brackets, and blade attachments to ensure secure operation without the need to remove the fan from the ceiling. The durable construction materials and balanced design contribute to long-term reliability and silent operation.

What's Included

• Eliot Parc-3 Three Blade Ceiling Fan (60" blade span)
• Integrated dimmable LED light kit with 1 bulb
• Canopy (6" diameter)
• 1-10" downrod (adjustable mounting options available separately)

What Needs to be Ordered Separately

• Additional downrods for mounting heights greater than 10" (available in 5", 20", 30", 48", 72")

Key Features

• Contemporary style with solid balsa wood blades and aluminum/steel motor housing
• DC motor with 6 speeds and silent operation (noise level: silent)
• High airflow efficiency of 219 CFM/Watt on average
• Compatible with flat and vaulted ceilings using versatile downrod lengths
• Energy-efficient, dimmable LED light kit with 1693 lumens and 60,000-hour lifespan
• Suitable for commercial and residential use across multiple interior and exterior spaces
