Product Overview

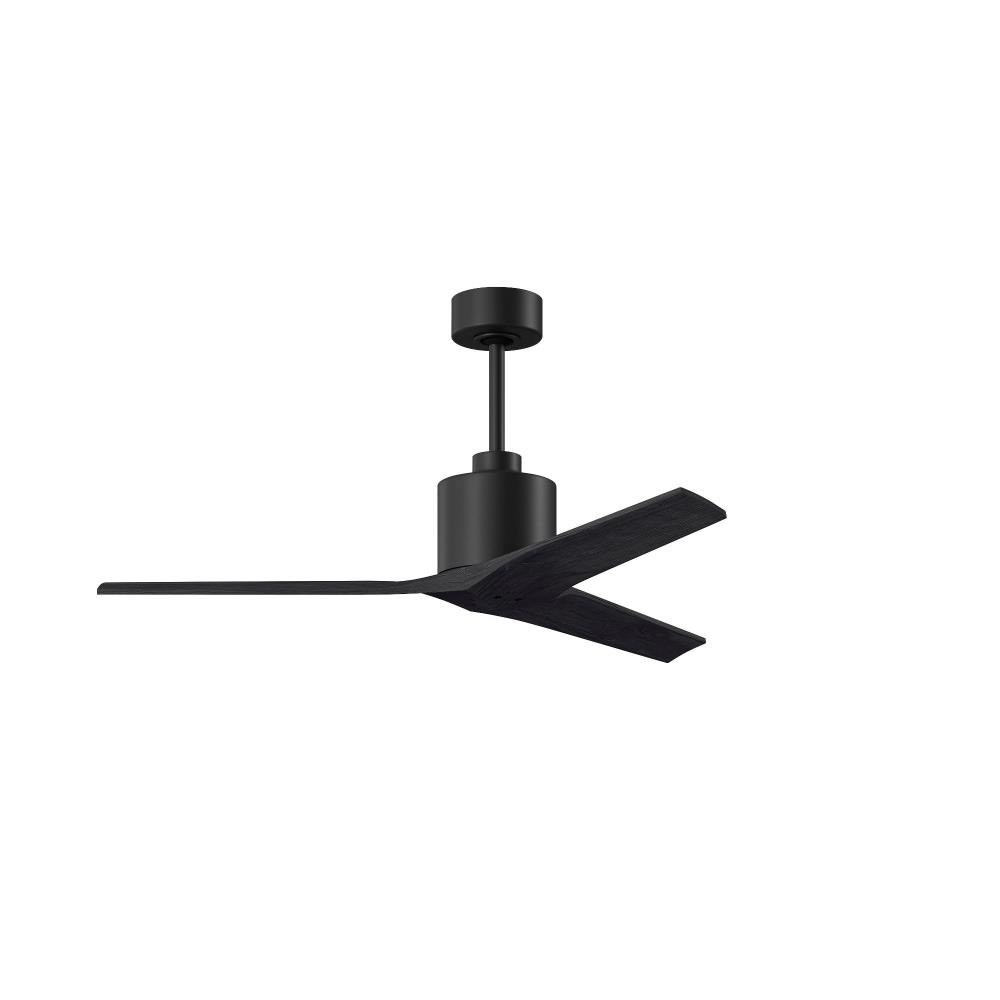

Enhance your indoor environment with the Chester Lane Ceiling Fan, a contemporary 52-inch wide fan designed by Chicago architect Stephen Katz in 2018. This fan seamlessly blends modern organic geometry with exceptional performance, making it an ideal addition to any room or décor style. Featuring thick, solid wooden blades crafted from balsa wood, the Chester Lane fan exhibits natural woodgrain that adds depth and character, creating a clean, natural, and sophisticated aesthetic.

Technical Specifications

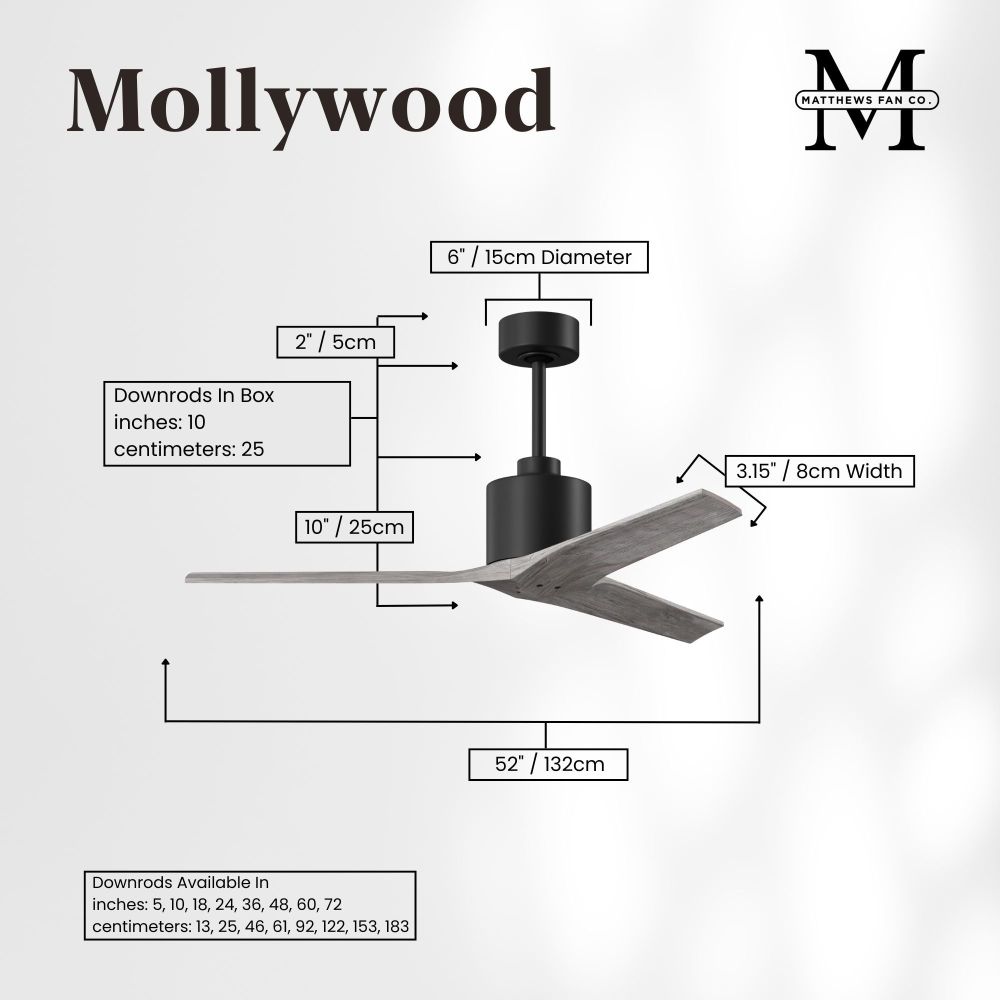

The Chester Lane fan measures 52 inches in blade span and overall length and width, with a height of 10 inches. The blades are pitched at 45 degrees to optimize airflow. It operates at six speeds, delivering airflow ranging from 1,774 CFM on low speed, 3,639 CFM on medium, up to 5,504 CFM on high speed, ensuring efficient cooling tailored to your comfort needs. The motor draws 0.425 amps and consumes 31.60 watts at high speed, resulting in an impressive airflow efficiency of 88 CFM per watt. The fan runs silently, with RPMs ranging from 51 on low to 129 on high, suitable for both commercial and residential applications.

Installation and Maintenance

The Chester Lane ceiling fan is designed for stem hanging with an included canopy of 6-inch diameter and a rod length of 10 inches, allowing for straightforward installation. The overall drop from ceiling to fan is 12 inches, making it suitable for rooms with standard ceiling heights. For optimal performance and safety, it is recommended to check support connections, brackets, and blade attachments twice a year, ensuring they remain secure without the need to remove the fan from the ceiling.

Key Features

• Contemporary design with natural balsa wood blades
• 52-inch blade span with 45-degree blade pitch for maximum airflow
• Six-speed settings with airflow up to 5,504 CFM
• Silent operation with low power consumption (31.60 watts at high speed)
• Durable aluminum and steel construction for long-lasting use
• Suitable for both commercial and residential environments

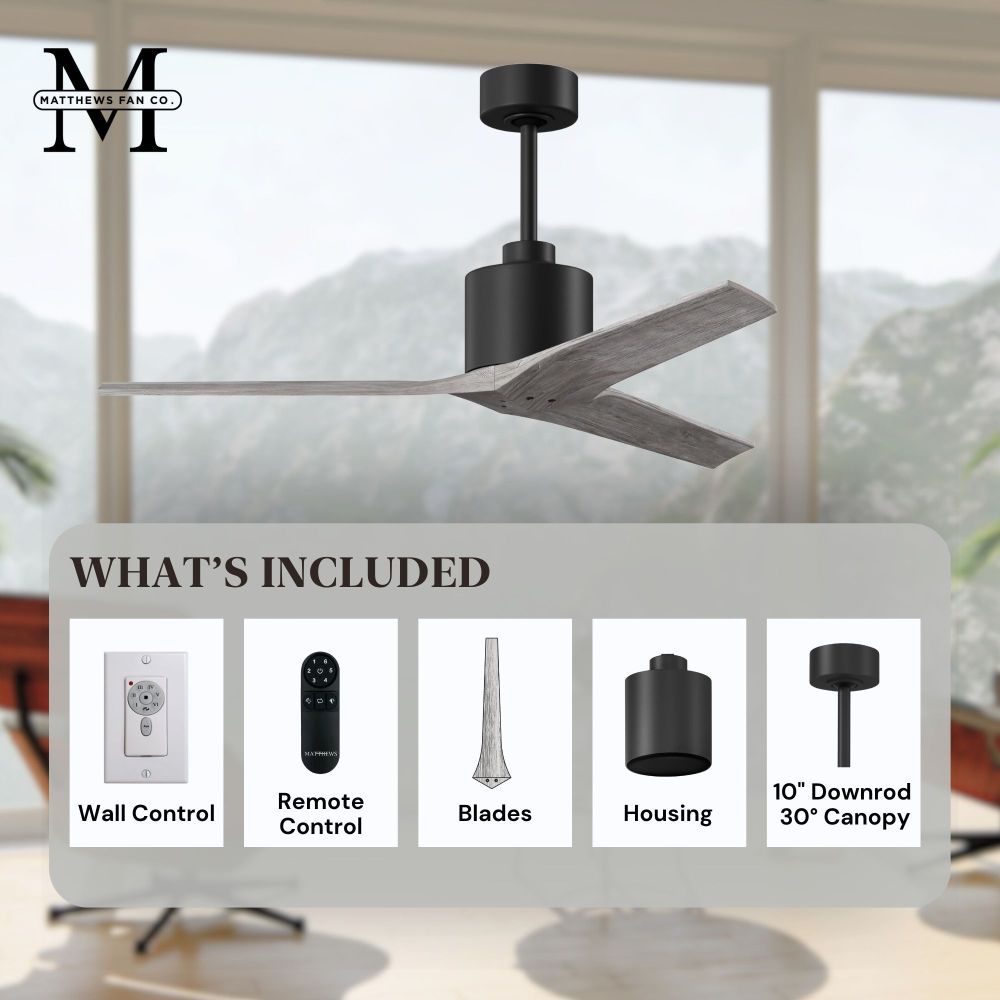

What’s Included

• Chester Lane Ceiling Fan with 3 solid wooden blades
• 6-inch diameter canopy
• 10-inch hanging rod

What Needs to Be Ordered Separately

• Additional mounting hardware if required for specific ceiling types
• Optional longer downrods for higher ceilings
