Product Overview

The Allison Point 46 Inch Rotational Ceiling Fan improves air circulation and temperature control with its unique hourglass design. Its bullet-shaped motor housings rotate around a teardrop center, allowing fan heads to be positioned infinitely within 180-degree arcs. Unlike standard oscillating fans, the fan heads pivot for precise airflow direction, with adjustable blade speed and motor angle controlling the rotation rate for varied breeze intensity.

Technical Specifications

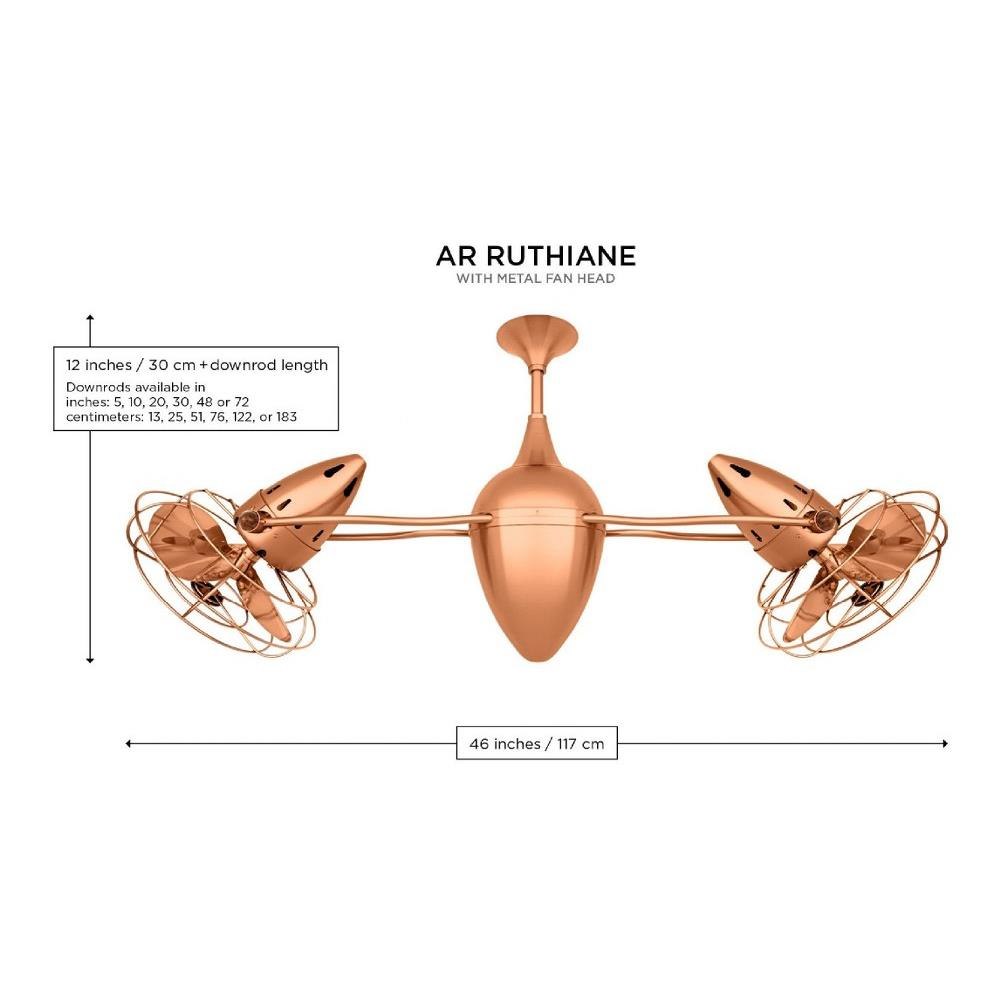

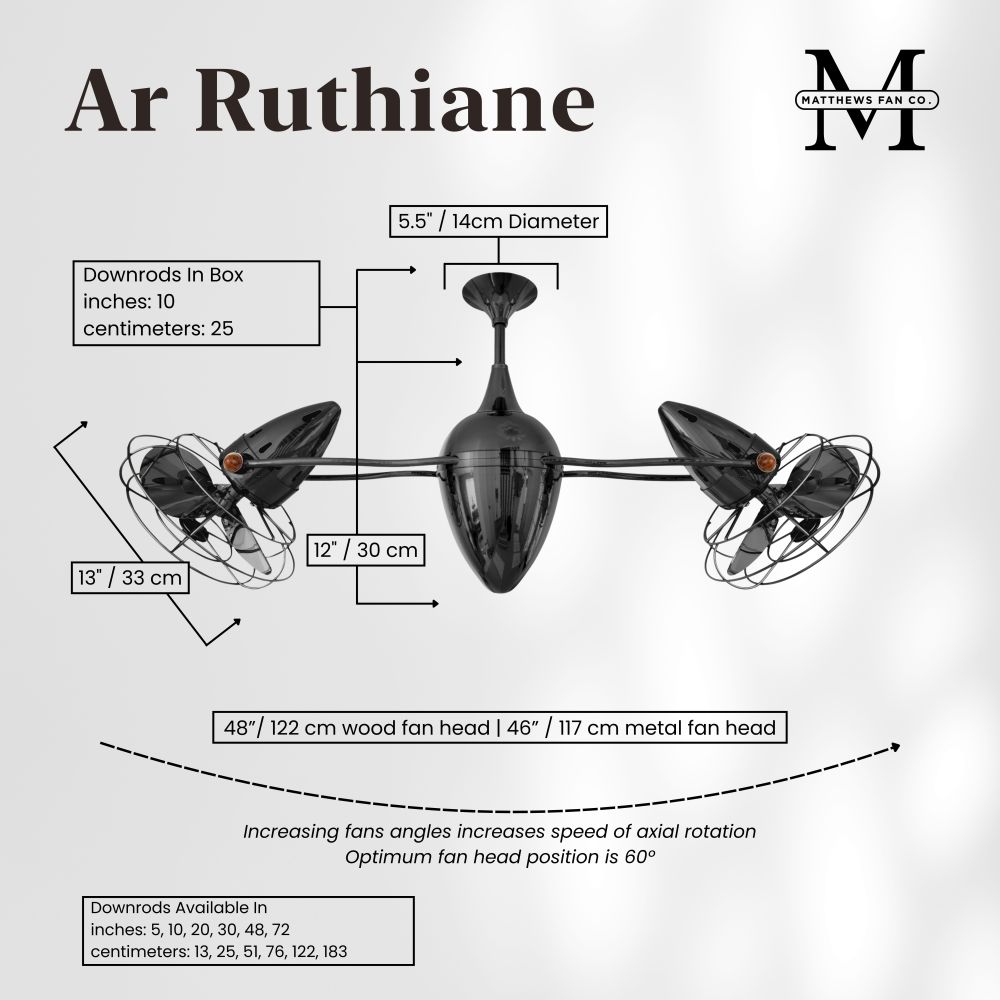

• Dimensions: 46" width, 13" height
• Blades: 6 blades with 31° pitch
• Airflow: High speed 2371 CFM, low speed 1215 CFM
• Materials: Cast aluminum, heavy spun and stamped steel
• Motor Mount & Knobs: Marbleized Bakelite
• Mounting: Stem-mounted with 10" downrod; optional downrods (5", 20", 30", 48", 72") are field-cuttable
• Ceiling Compatibility: Flat ceiling canopy included; 29° vaulted ceiling canopy accessory available

Design and Benefits

Handcrafted for quality, the fan combines style and function. Its rotating heads and adjustable speeds enhance air circulation for better comfort and energy efficiency. Available with Brazilian mahogany or metal blades, it offers versatile aesthetics. Safety cages and blade guards are available for installations with ceilings as low as 7 feet.

Installation and Usage

Includes a Decora-style 3-speed wall switch. Suitable for damp locations with powder or clear coat finishes but not for saltwater environments. Downrods are not threaded but can be cut to length. Non-oscillating motor heads enable precise airflow direction.

Included Items

• Allison Point 46 Inch Rotational Ceiling Fan with 6 blades
• 10" downrod
• Flat ceiling canopy
• Decora-style 3-speed wall switch (white)

Optional Accessories

• Additional downrods (5", 20", 30", 48", 72")
• Safety cages for low ceilings
• 29° vaulted ceiling canopy
• Blade options: metal blades with guards, solid Brazilian mahogany blades, or metal blades with safety cages

Key Features

• Rotational fan heads with infinite 180° positioning
• Airflow up to 2371 CFM
• Durable cast aluminum and steel with marbleized Bakelite accents
• Adjustable rotation speed via blade pitch and motor angle
• Customizable downrod lengths
• Handmade craftsmanship
• Compatible with damp locations and various ceiling types
